2.4GHz Wireless Transceiver NRF24L01

50.00 EGP

SKU: mod13 Category:

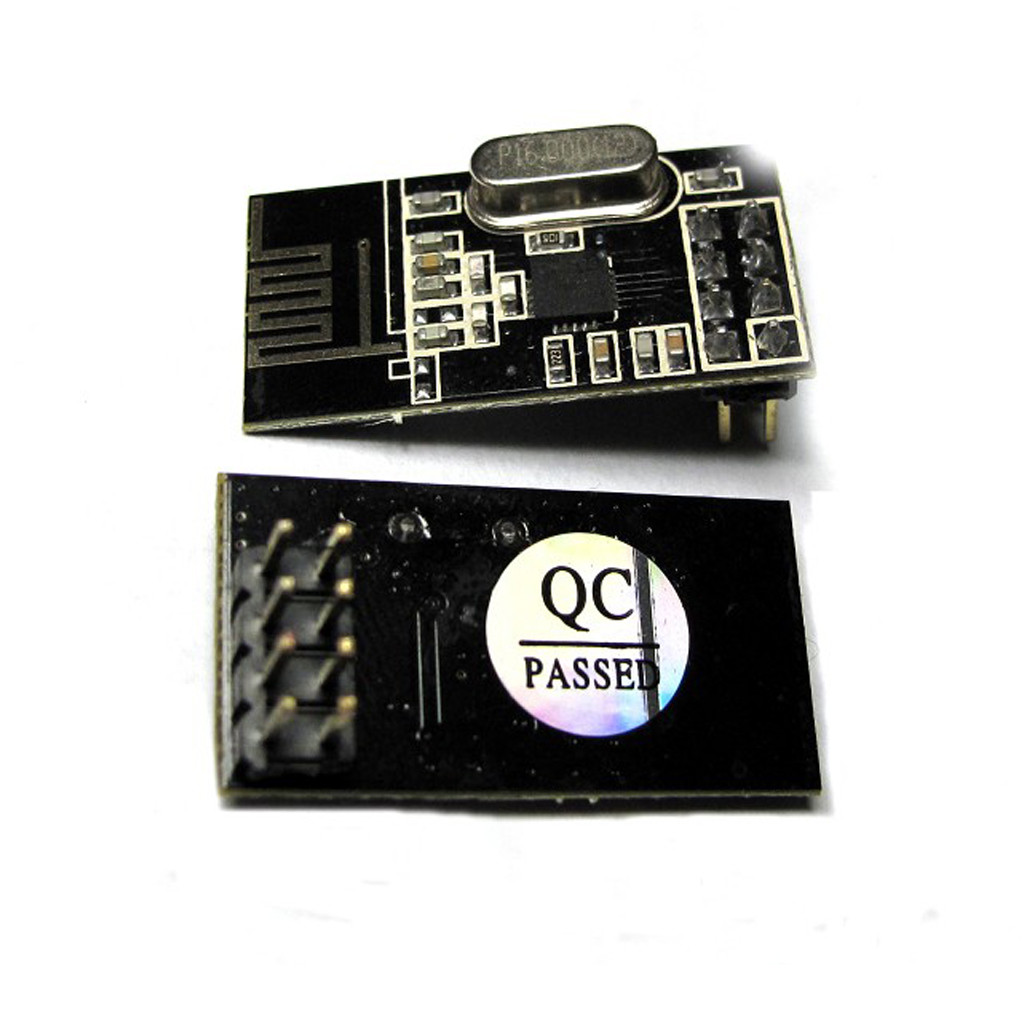

These are a series of 2.4 GHz Radio modules that are all based on the Nordic Semiconductor  module nRF24L01. The Nordic nRF24L01 integrates a complete 2.4GHz RF transceiver, RF synthesizer, and  Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.

The low-power module with range about (60 meter or so)Transceiver is available on a board with Arduino interface and built-in Antenna. Having two or more Arduinos be able to communicate with each other wirelessly over a distance opens lots of possibilities:

  • Remote sensors for temperature, pressure, alarms, much more
  • Robot control and monitoring up to 85 meters
  • Remote control and monitoring of nearby or neighborhood buildings

Transceivers like these both send and receive data in ‘packets’ of several bytes at a time. There is built-in error correction and resending, and it is possible to have one unit communicate with up to 6 other similar units at the same time.


  • Power Supply: 3.3 v
  • On-board integrated pcb antenna
  • 100m Range at 250kbps
  • Ultra low power consumption – months to years of battery lifetime
  • 250kbps to 2Mbit Data Rate
  • Auto Acknowledge & Auto Re-Transmit
  • Multiceiver – 6 Data Pipes
  • Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
