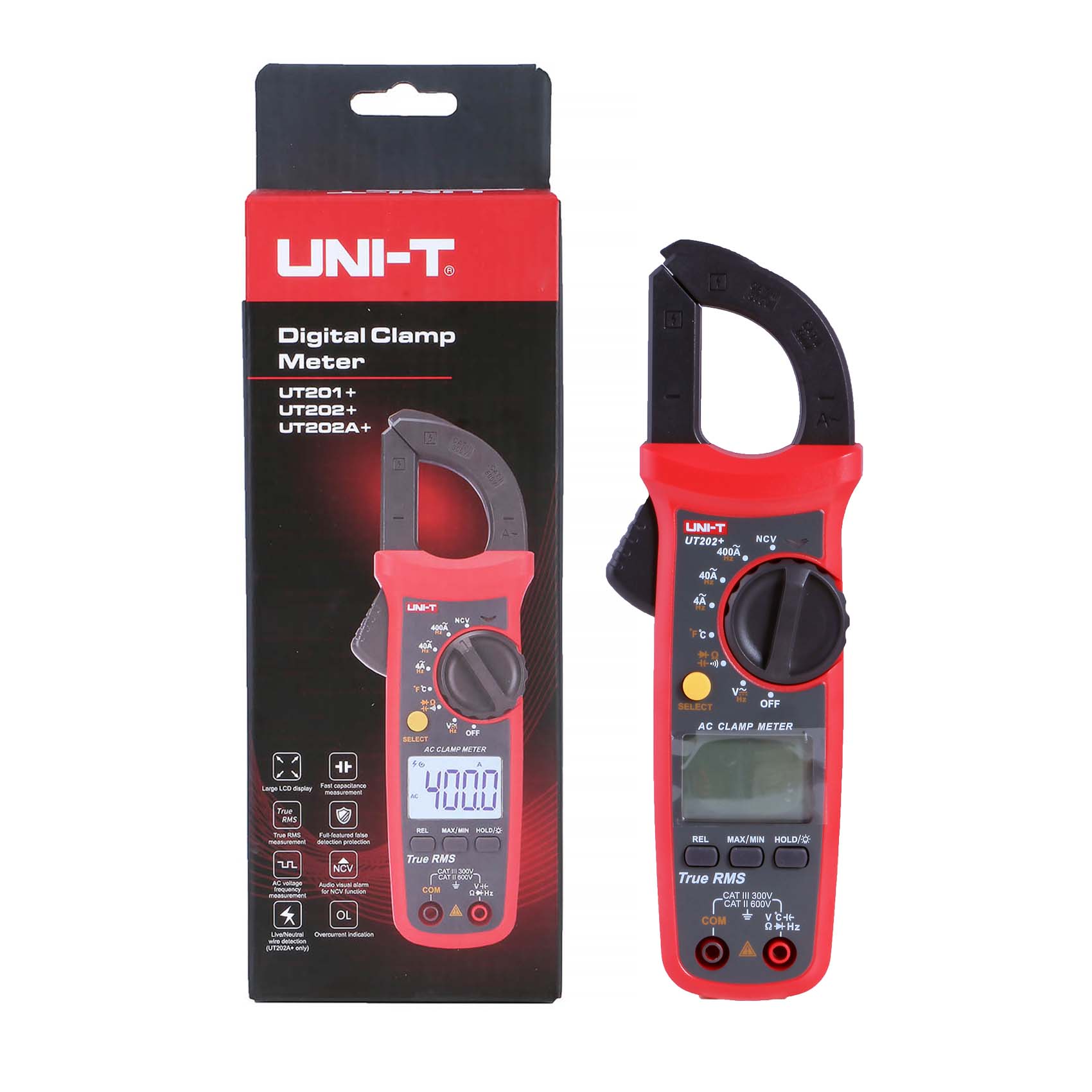

UT201+ 400A digital clamp meter – True RMS Basic and advanced clamp meter for:
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
UT201+ it the new updated model from UT201
| Specifications |
Range |
UT201+ |
| AC current (A) |
400A |
±(2%+10) |
|
|
| AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
|
|
|
|
|
| AC voltage (V) |
600V |
±(0.8%+5) |
| AC voltage frequency(Hz) |
10Hz~10kHz |
±(1%+5) |
|
|
| DC voltage (A) |
600V |
±(0.5%+2) |
| Resistance (Ω) |
40MΩ |
±(0.8%+2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Features |
| Display count |
|
4000 |
| Auto range |
|
√ |
| Jaw opening |
|
28mm |
| True RMS |
|
√ |
| NCV |
|
√ |
| Live wire test |
|
NO |
| Continuity test |
|
√ |
| Diode |
|
√ |
| MAX/MIN |
|
√ |
| Relative mode |
|
NO |
| Zero mode |
|
NO |
| Data hold |
|
√ |
| Low battery indication |
|
√ |
| Auto power off |
|
√ |
| General Characteristics |
| Power |
1.5V battery (R03) x 2 |
| Display |
37mm x 25mm |
| Product color |
Red and grey |
| Product net weight |
248g |
| Product size |
215mm x 63mm x 36mm |
| Standard individual packing |
Gift box, Carrying bag, English manual |
