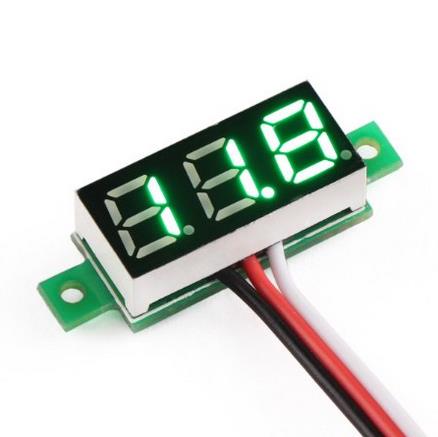

Digital Voltmeter DC (0V-30V -Green)

45.00 EGP



  • To achieve the best measurement precision, the voltmeter will measure the voltage according to the different automatic moving the position of the decimal point
  • Can be used for measuring the car / battery car / motorcycle battery voltage, and other forms of voltage
  • Can be used in all kinds of voltage measurement purposes

Technical Parameters:

  • Weight:                                       5g
  • Display color:                                  Green
  • Display mode:                               Three 0.36 LED digital tube
  • update rate:                                   About 500 ms/time
  • Physical size:                                 27 x 14 x 5 mm (L*W* H)
  • Hole diameter:                                2mm
  • Input range :                              4-30V
  • Power supply:                            Need the power supply
  • Lead wire length:                         9.5 cm
  • The minimum input:                    4V
  • The maximum input:                   30V
  • Measurement range:                   DC 0-200V
  • Operation temperature:            -10 degrees~65 degrees
  • Measurement accuracy:                  ± (1% + 2 Digit)
  • Mounting holes distance:           27mm

Red line : Power Supply + (4-30V )  Yellow line: Measure Voltage +  Black line: Power Supply -, Measure Voltage-
