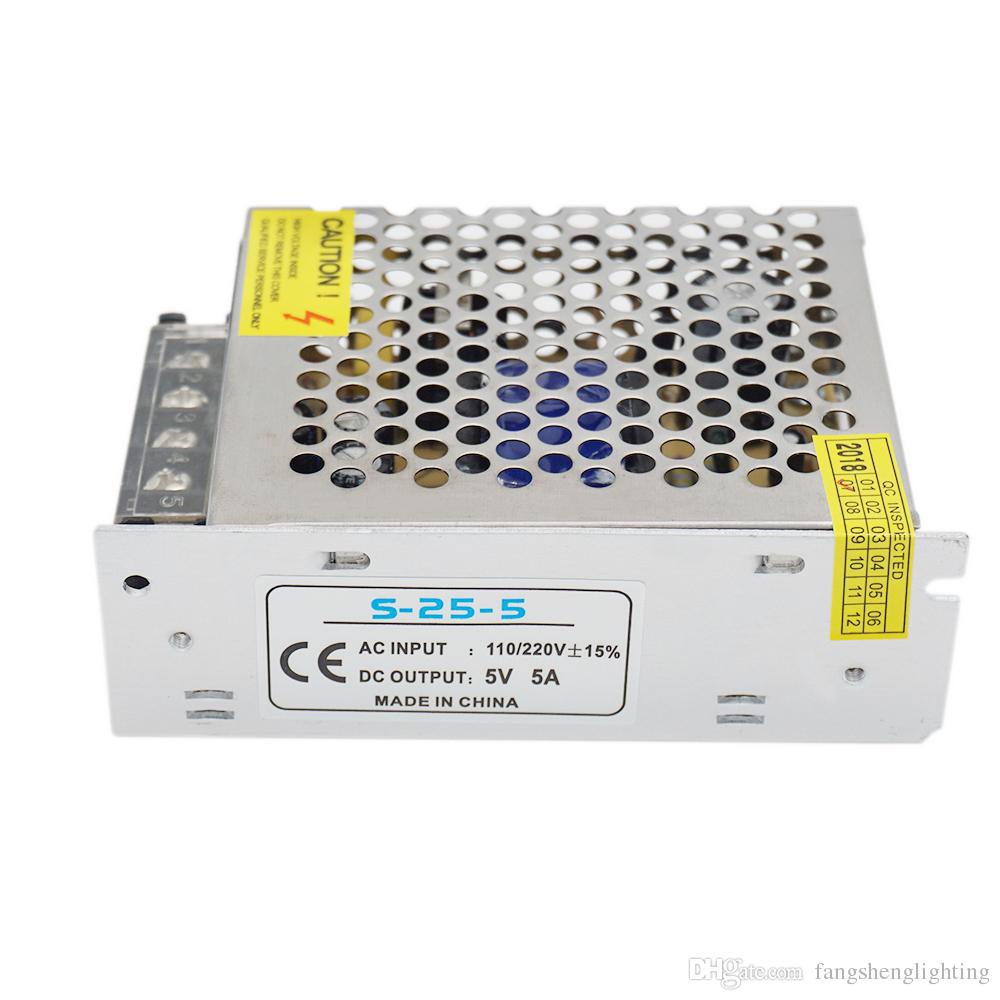

Power supply 5V /5A

75.00 EGP

Compare

Description

Model

S-25-5

Input

AC input voltage range(V) AC 85-265V
AC Input current(max) 0.6A /220V;1.2A/110V
Frequency (Hz) 50/60Hz
Efficiency 84% Typ(230VACFull Load)
Inrush current(A) Cold-start 20A/220V
Leakage current(mA) <3mA/240VAC

Output

Output Voltage(V) +5VDC
Voltage Regulation

+10%,-10%

Output Current(A) 5A
Current  Range (A) 0-5A
Rated Power(W) 25W
Start time,hold-up time(ms) Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms) Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p) 120mVp-p

Environment

working Temperature (°C) -40°C – +65°C(refer derating curve)
Storage Temperature(°C) -20°C – +60°C
Humidity 20% – 90% RH non condensing

Protection

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection >105%-150% Auto recovery
Short circuit Protection Latched

Others

Size  L*W*H(cm) 8.5*5.8*3.5cm
Weight 129g
