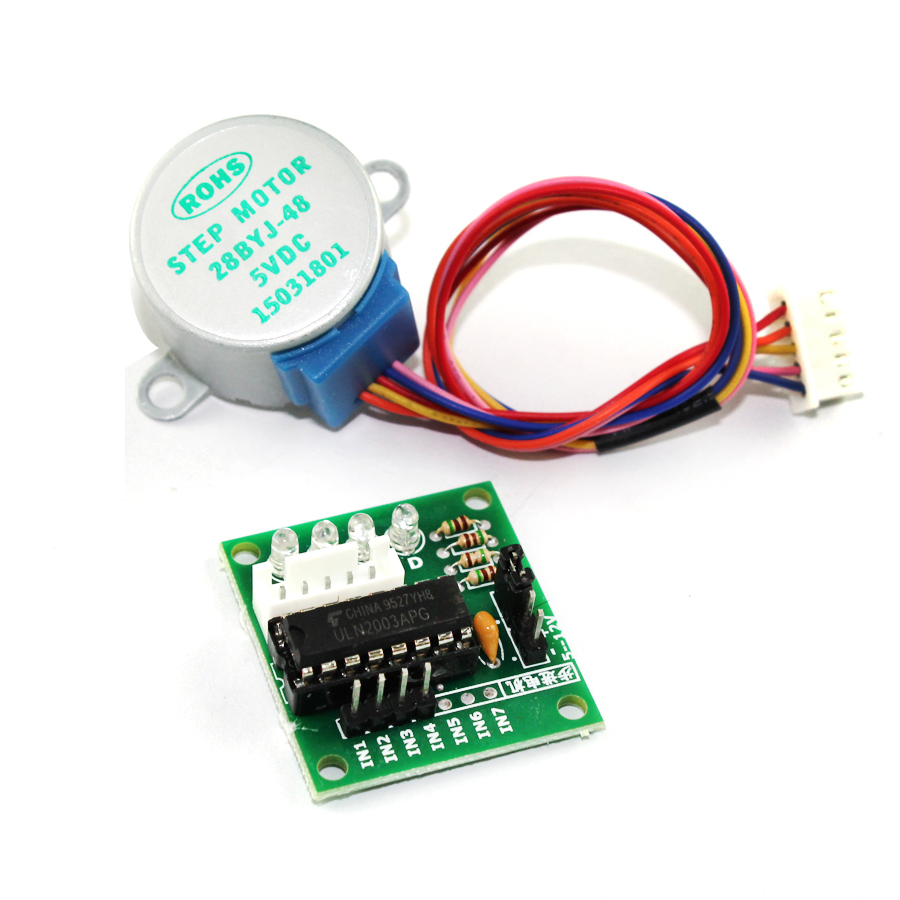

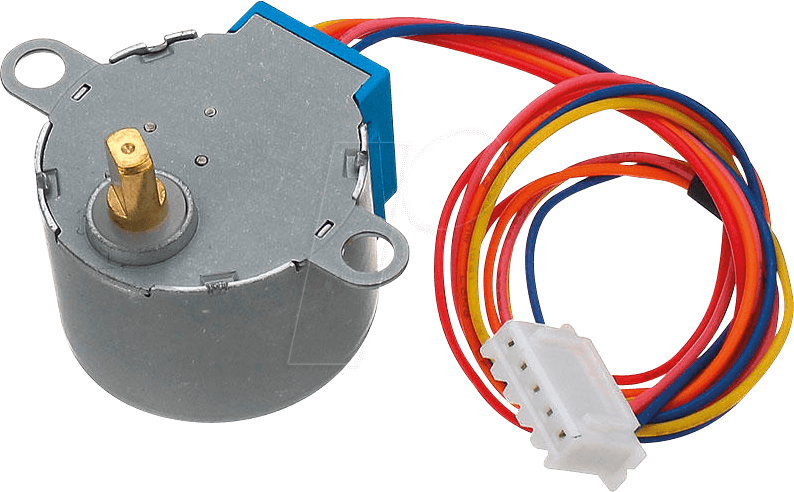

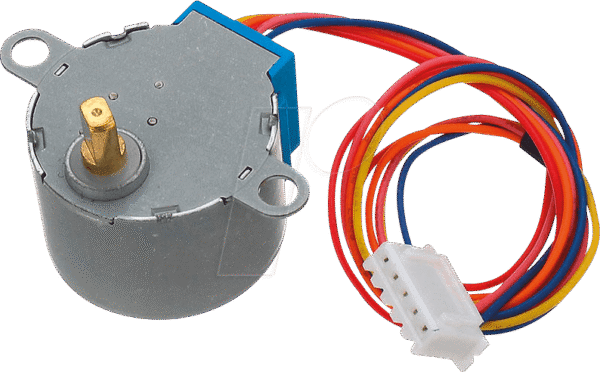

5V 4-Phase Stepper Motor + Driver Board ULN2003

50.00 EGP

Compare

Description

Specifications:
Diameter: 28mm / 1.1in
Voltage: DC 5V
Length: 274mm / 10.8in
Step Angle: 5.625 * 1/64
Reduction ratio: 1/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Board Size: Approx. 29 * 21mm
Total Weight: 41g / 1.43oz
