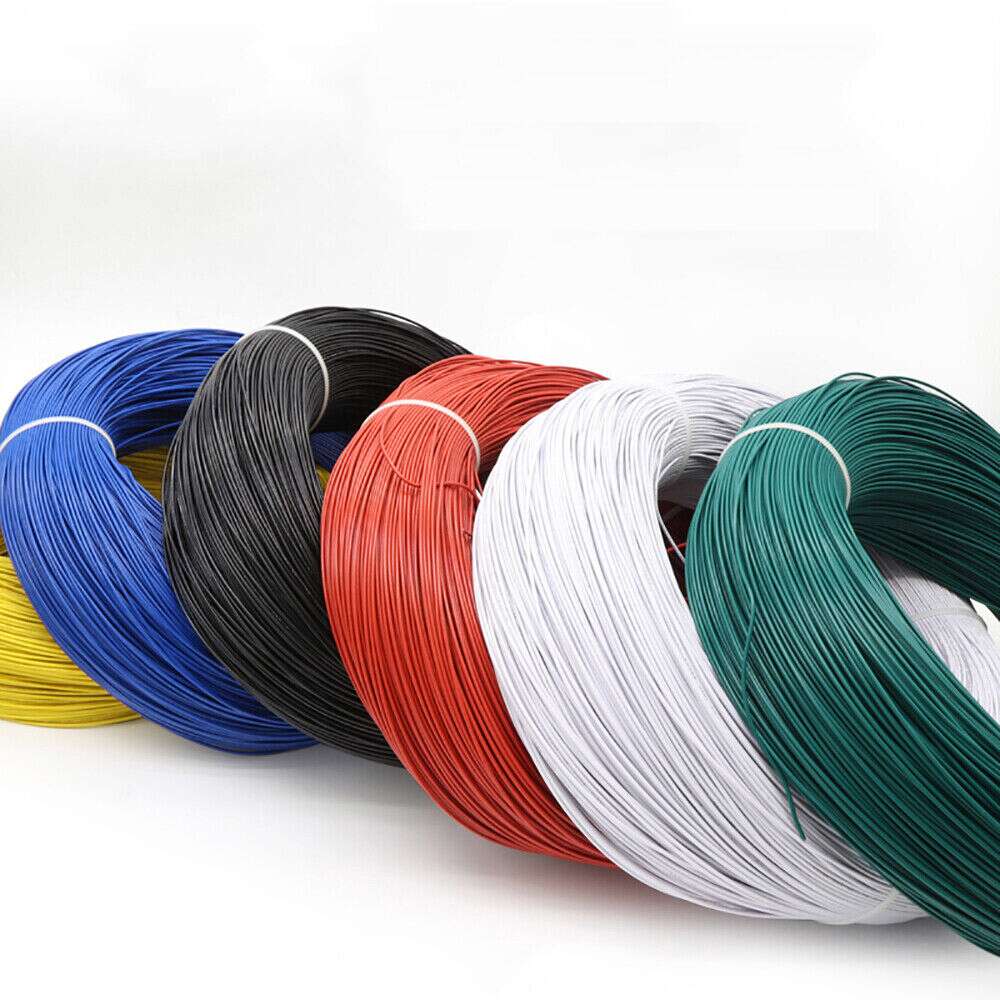

The AE027 is a standard flexible PVC-insulated hookup wire commonly used for low-voltage electronics, DIY prototyping, internal panel wiring, and small appliances.
Physical Dimensions & Wire Size
-
Conductor Inner Diameter: ~ 0.2 mm – 0.3 mm(approx. 28 AWG to 30 AWG equivalent copper conductor).
-
Outer Diameter (including PVC insulation): ~ 1.0 mm.
-
Conductor Type: Stranded copper (provides high flexibility and fatigue resistance).
Key Technical Specifications
| Parameter | Value / Rating |
| Model / SKU | AE027 |
| Rated Current (Amperage) | Up to 2 A maximum (recommended operational limit < 1.5 A) |
| Rated Voltage | 300 V |
| Temperature Rating | 80°C max (flexible PVC grade) |
| Insulation Material | Flexible PVC |
Common Applications
-
Internal DC power runs: Connecting microcontrollers (Arduino, ESP32, Raspberry Pi) to low-power sensors or module boards.
-
Low-current loads: Wiring small relays, LEDs/LED strips, signals, audio inputs, and low-voltage DC motors.
-
Enclosure wiring: Jumpers and internal harnesses in small electronics boxes or control panels where space is tight and flexibility is needed.
